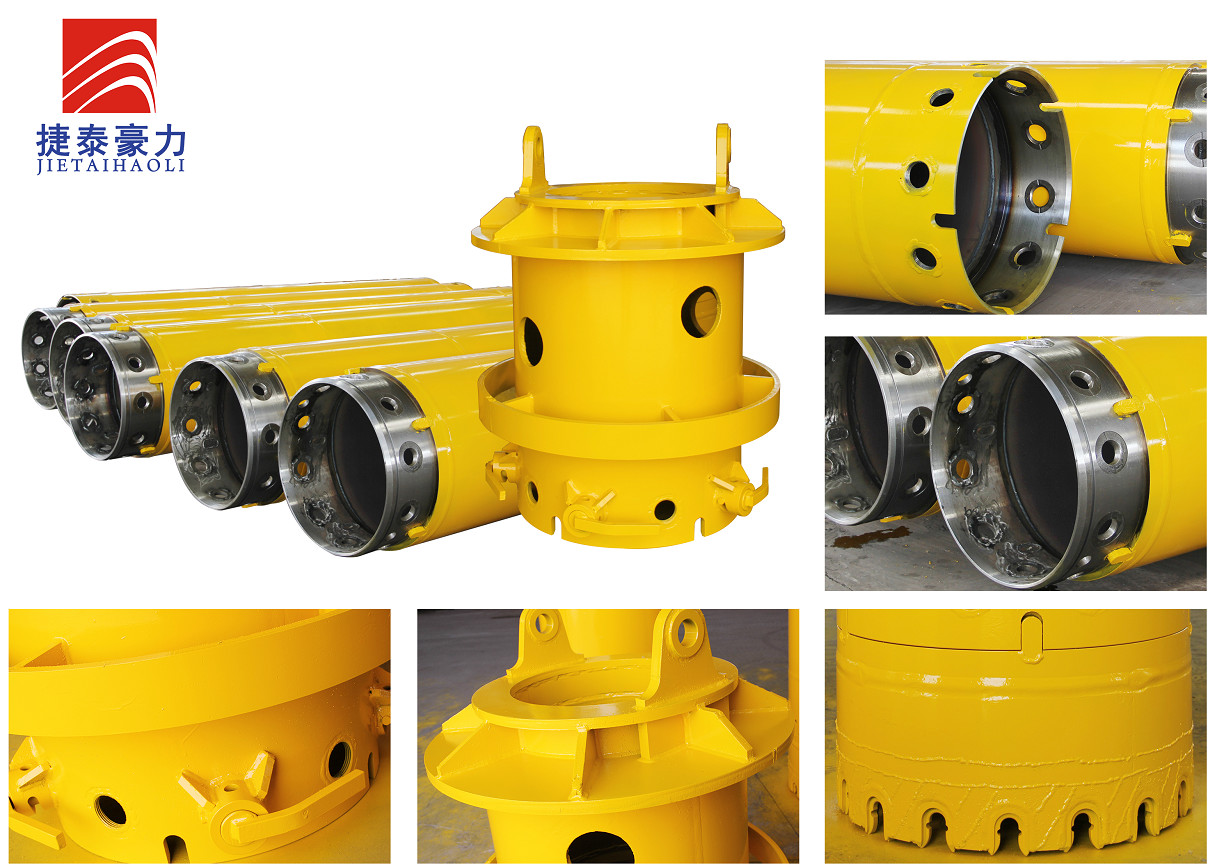

casing shoe adapter driver for piling rig construction machine
borehole brand Bauer made by JTHL
Drilling Casing Items adopt the high-carbon steel (Q345B, 16Mn, Q195-Q345, etc.) and
special welding method to keep the drilling strength and
efficiency.
Rotary Casing Pipe is obtained by driving a steel siding into the
ground in order to protect the whole drilling operation; basically,
the rotary drilling tool during the working process performs inside
mechanical protection made by the casing fixed into the ground.
Purchase the standard drilling casing items.
1). Single Wall Casing Pipes
Single-walled rotary casings pipe can be used for applications
where weight reduction is important.
Features: High-quality raw materials with superior strength from the leading
manufacturers.
Experienced technicians and operators to assure the best quality.
Engineers are available to service machinery overseas.
SINGLE WALL USING PIPES TECHNICAL DATA
| Diameter | Length | Casing Wall Thickness | Casing Wall Thickness | Bolt QTY |
| D1/D2 | 1m | 2m | 3m | 4m | 5m | 6m | T | B | Bolt |
| mm | Weight(KG) Parts No. | mm | mm | Nos |
| 1300/1200 | 845 | 1475 | 2105 | 2735 | 33656 | 3995 | 20 | 40 | 12 |
| 1500/1400 | 1310 | 2220 | 3130 | 4040 | 4950 | 5860 | 25 | 50 | 12 |
| 1800/1700 | 1580 | 2675 | 3770 | 4865 | 5960 | 7055 | 25 | 50 | 16 |
| 2000/1880 | 2140 | 3355 | 4570 | 5785 | 7000 | 8215 | 25 | 60 | 12 |
| 2200/2080 | 2350 | 3690 | 5030 | 6370 | 7710 | 9050 | 25 | 60 | 12 |
| 2500/2380 | 2575 | 4100 | 5625 | 7150 | 8675 | 10200 | 25 | 60 | 16 |
2) Double Wall Casing Pipes
Double-walled rotary casings pipe can be used universally, as they
are designed especially for transmitting high rotational and
vertical forces as created by the rig rotary drives or
oscillations.
The use of double-walled casings ensures a flush drill string.
Features: High-quality raw materials with superior strength from the leading
manufacturers.
Experienced technicians and operators to assure the best quality.
Engineers are available to service machinery overseas.
DOUBLE-WALL CASING PIPES TECHNICAL DATA
| Diameter | Length | Casing Wall Thickness-1 | Casing Wall Thickness-2 | Total Thickness | Bolt QTY |
| D1/D2 | 1m | 2m | 3m | 4m | 5m | 6m | A1 | A2 | T2 | Bolt |
| mm | Weight(KG) Parts Number | mm | mm | mm | (Nos) |
| 620/540 | 403 | 739 | 1074 | 1411 | 1747 | 2081 | 12 | 8 | 40 | 8 |
| 750/670 | 492 | 902 | 1311 | 1722 | 2131 | 2540 | 12 | 8 | 40 | 10 |
| 880/800 | 585 | 1069 | 1552 | 2036 | 2520 | 3005 | 12 | 8 | 40 | 10 |
| 1000/920 | 669 | 1221 | 1773 | 2328 | 2877 | 3429 | 12 | 8 | 40 | 10 |
| 1180/1100 | 844 | 1580 | 2316 | 3052 | 3787 | 4522 | 16 | 8 | 40 | 12 |
| 1200/1120 | 872 | 1620 | 2370 | 3120 | 3870 | 4620 | 16 | 8 | 40 | 12 |
| 1300/1220 | 933 | 1746 | 2558 | 3372 | 4184 | 4996 | 16 | 8 | 40 | 12 |
| 1500/1400 | 1433 | 2628 | 3817 | 5009 | 6210 | 7393 | 20 | 10 | 50 | 12 |
| 1800/1700 | 1730 | 3166 | 4602 | 6038 | 7474 | 8910 | 20 | 10 | 50 | 16 |
| 2000/1880 | 2450 | 4280 | 6110 | 7940 | 9770 | 11600 | 20 | 15 | 60 | 12 |
| 2200/2080 | 2700 | 4720 | 6740 | 8760 | 10780 | 12800 | 20 | 15 | 60 | 12 |
| 2500/2380 | 2960 | 5240 | 7520 | 9800 | 12080 | 14360 | 20 | 15 | 60 | 16
|
casing shoes adapter driver for piling rig construction machine
bore hole brand Bauer made by JTHL
Due to space limitations, not all product details are displayed.
For details, please consult Jack An,
After clicking on the link on the phone you can use Whatsapp to
contact me directly.We can discuss more details in there .
