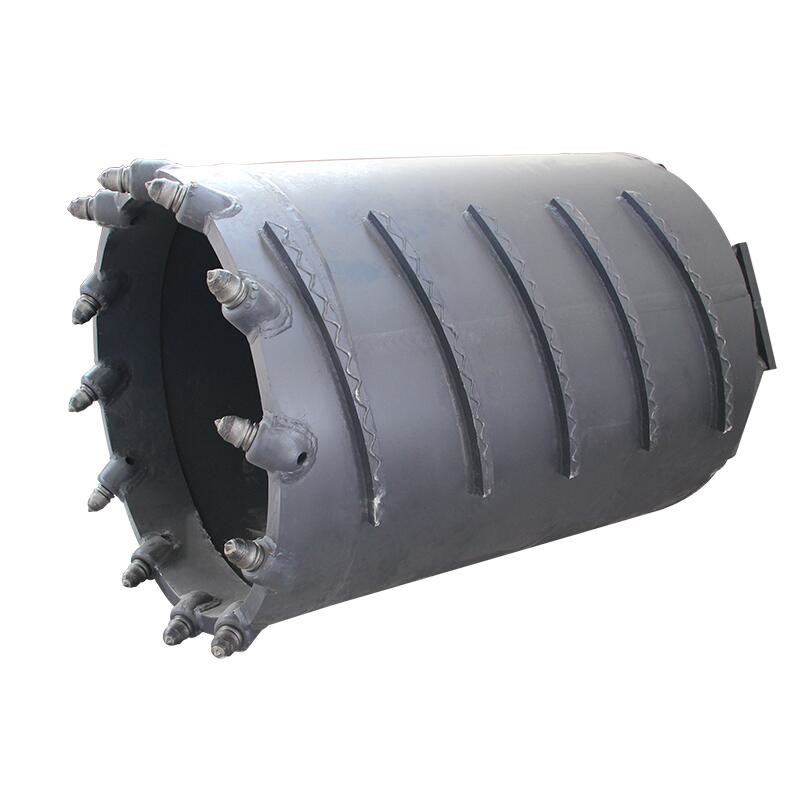

Bullet Teeth Core Barrel Drilling Rig Tool For Hard Rock Layer Construction

JTHL Drilling Tools Core Barrel With Bullet Teeth

Open Bucket :

• FEATURE :

  1. Cutting ring with rock drilling bits and releases the internal stress of rock;

  2. Rock drilling bits perform stage breaking and drilling ;

  3. Applicable layers: backfill layer, medium weathered rock, bedrock;

  Cutting Dia.	Shell HIT.	Shell OD.	Shell THK.	Stiffening Ring THK.	Stiffening Ring HIT.	Teeth No.	Weight
  φ600	1200	520	16	20	200	6	520
  φ800	1200	720	16	20	200	9	672
  φ900	1200	820	16	20	200	10	750
  φ1000	1200	920	16	20	200	11	847
  φ1200	1200	1120	16	20	200	13	1010
  φ1500	1200	1420	16	20	200	16	1370
  φ1600	1200	1520	16	20	200	17	1493
  φ1800	1000	1720	20	20	200	19	1841
  φ2000	800	1920	20	20	200	21	1852
  φ2200	800	2120	20	20	200	23	2329
  φ2500	800	2420	20	20	200	27	2705
  φ2800	800	2720	20	20	200	30	3200
  φ3000	800	2920	20	20	200	32	3800
  Remark:all measurements in millimeters (mm); weight in kilograms(kg);
