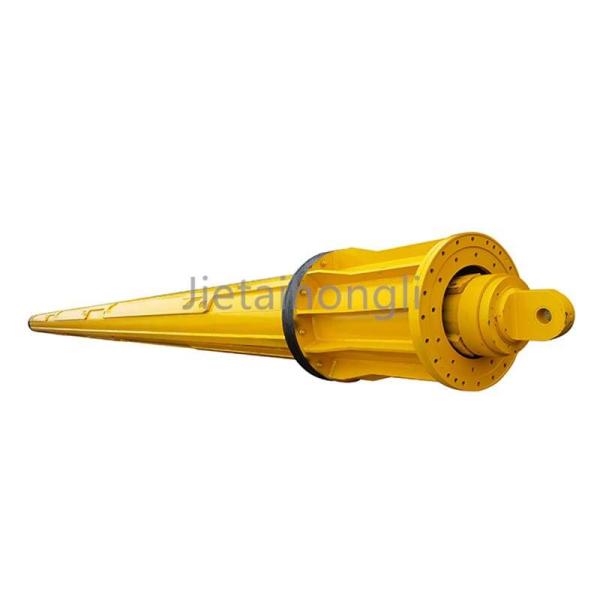

Mait HR180 OD368mm Interlocking And Frictional Kelly Bar
Application:Be used for Rotary piling rig drilling tools dig hole
in rock or soil layer.
Type:Telescopic Kelly Bar 3/4/5 sections
Lock Type:Interlocking / Frictional
Max Drilling Depth :20-50m
Max Drilling Diammeter:1500mm
| OEM/ODM | Both |
| Material | Q345B /Q460D / 35CrMo With Special Heat Treatment /27SiMn |
| Manufacture Process | Robot Welding ,Gas Shielded welding , Manual DC Welding |
| Tailored | Round /Square |
Specification
| No. | Diammeter of The First Section
| Sections | Key Pressure Type | Length of per section(m) | Drill depth | Torque(KN.M) |
| 1 | ¢299 | 3 | | | Interlocking | 9-12 | 24-45 | 100 -120 |
| 2 | ¢342 | 3 | 4 | | Interlocking | 9 - 12 | 24-45 | 100 -120 |
| 3 | ¢355 | 3 | 4 | | Interlocking | 9 - 14 | 24 - 56 | 100-120 |
| 4 | ¢368 | 3 | 4 | | Interlocking | 9 - 14 | 24 - 56 | 150-180 |
| 5 | ¢377 | 3 | 4 | | Interlocking | 9 - 14 | 24 - 56 | 150-180 |
| 6 | ¢394 | 3 | 4 | | Interlocking | 9 - 15 | 24 - 58 | 180-200 |
| 7 | ¢406 | 3 | 4 | | Interlocking | 9 - 15 | 24 - 58 | 180-200 |
| 8 | ¢419 | 3 | 4 | | Interlocking | 9 - 15 | 24 - 58 | 200-230 |
| 9 | ¢440(445) | 3 | 4 | | Interlocking | 9 - 15 | 24 – 58 | 220-260 |
| 10 | ¢470 (482) | 3 | 4 | | Interlocking | 9 - 16 | 24 – 60 | 220-260 |
| 11 | ¢508 | 3 | 4 | | Interlocking | 9 – 18 | 24 – 68 | 260-360 |
| 12 | ¢530 (540) | 3 | 4 | 5 | Interlocking | 9 – 20 | 32 – 92 | 320-400 |
| 13 | ¢580(575) | 3 | 4 | 5 | Interlocking | 9 – 20 | 32 – 92 | 360-420 |
| 14 | ¢630 | 3 | 4 | 5 | Interlocking | 9 - 22 | 32 - 102 | 400-500 |
Our company founded in 2004, headquartered in Beijing, branch
factory in Shouguang, Shandong. The company is mainly engaged in
the production and sales of rotary piling kelly bars , drilling
tools, rotary piling rig overhaul, rig sales and accessories
supply.
Over the years we focus on research and development of the
production of kelly bars, drill tools, with complete kelly bars
fabriction and testing equipments, as well as we own professional
research , design, sales and after-sales service team. Our company
has a number of self-developed patented products, matched with
domestic and abroad brands such as SANY, CRRC, XCMG, Bauer,
Soilmec, IMT and other brand rigs , exported to Southeast Asia, the
United States, Russia, the Middle East and other countries.
Why choose our company ?
Ans.:
1.With more than 17 years experience of manufcaturer kelly bars and
piling tools.Own the advanced manufacturer facilities,robot welding
and mature working team whcih can make our products more durable
and high quality .
2.We use super quality seamless steel pipe material, which makes
the kelly bar light weight, high vertical, high wear resistance.
our kelly bar with competitive and reasonable price.
3.We own two factories ,one is focus on kelly bar manufacture
a.another one is foucs on drilling tools and casing.And own two big
stocks ,one stock located in Beijing near airport and Tianjin Port
,another stock located in Shandong near Qingdao port,which can
supply timely and efficient delivery of goods.
4.We can supply the oversea after-sale service available . Now our
professional maintenance technology ,competitive price and good
service have gotten support from domistic and abroad clients'
support.
