Beijing Jietai Haoli Technology Development Co., Ltd. is one
comprehensive enterprise that produces and sells rotary drilling
kelly bars ,drilling tools,piling rigs spares and piling rig
maintenance.

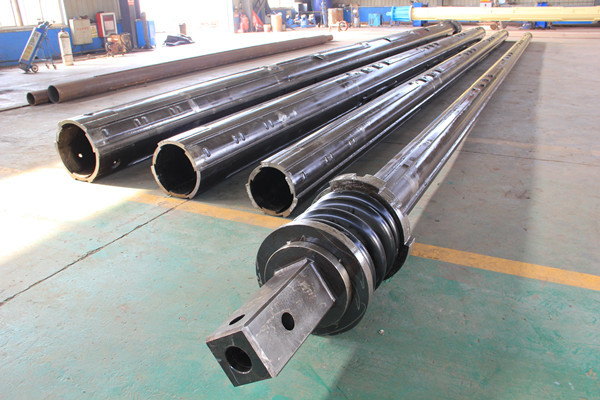

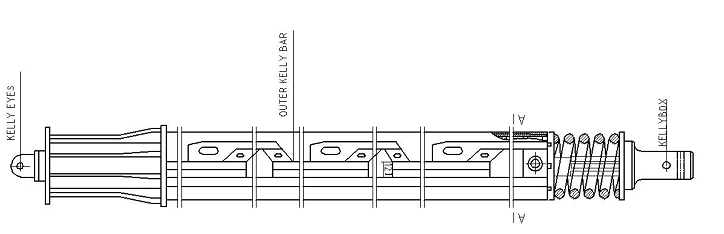

Based on the integration of Bauer, Soilmec and IMT interlocking
kelly bars,we studied one big (multi) interlocking kelly bar,which
have applied for patents. This kind kelly bar has the following
advantages:
(1) The pressurized area is increased, which is 3-4 times the
pressurized area of other type kelly bars;
- The pressurized force is evenly distributed, avoiding long-term
concentrated stress the phenomenon of premature breakage of the
kelly bars so effectively prolongs the service life of the drill
pipes;
- The stability of kelly bars when during the drilling process is
more better due to the pressure at multiple points, which avoids
the the phenomenon of drilling offset, inclined hole or expanding
hole.
The practice has shown that, this big (multi) interlocking kelly
bar has more advantage of increased pressurized area, extended
pressurized linear distance, uniform force distribution, and better
drilling stability rather than the original interlocking type kelly
bars. This type kelly bar is more suitable for the construction of
large-diameter and hard rock formations.
Specification
| | | | | | | | |
| No. | Diammeter of The First | Sections | Sections | Sections | Key Pressure Type | Length of per section(m) | Drill depth | Torque(KN.M) |
| 1 | ¢299 | 3 | | | Interlocking | 9-16 | 24-45 | 100 -120 |
| 2 | ¢342 | 3 | 4 | | Interlocking | 9-16 | 24-45 | 100 -120 |
| 3 | ¢355 | 3 | 4 | | Interlocking | 9-16 | 24 - 56 | 100-120 |
| 4 | ¢368 | 3 | 4 | | Interlocking | 9-16 | 24 - 56 | 150-180 |
| 5 | ¢377 | 3 | 4 | | Interlocking | 9-16 | 24 - 56 | 150-180 |
| 6 | ¢394 | 3 | 4 | | Interlocking | 9-16 | 24 - 58 | 180-200 |
| 7 | ¢406 | 3 | 4 | | Interlocking | 9-16 | 24 - 58 | 180-200 |
| 8 | ¢419 | 3 | 4 | | Interlocking | 9-16 | 24 - 58 | 200-230 |
| 9 | ¢440 / ¢445 | 3 | 4 | | Interlocking | 9-16 | 24 – 58 | 220-260 |
| 10 | ¢470 | 3 | 4 | | Interlocking | 9-16 | 24 – 60 | 220-260 |
| 11 | ¢482 | 3 | 4 | | Interlocking | 9-16 | 24 - 60 | 220-260 |
| 12 | ¢508 | 3 | 4 | | Interlocking | 9-16 | 24 – 68 | 260-360 |
| 13 | ¢530 | 3 | 4 | 5 | Interlocking | 9-16 | 32 – 92 | 320-400 |
| 14 | ¢540 | 3 | 4 | 5 | Interlocking | 9-16 | 32 - 92 | 320-400 |
| 15 | ¢580 / ¢575 | 3 | 4 | 5 | Interlocking | 9-16 | 32 – 92 | 360-420 |
| 16 | ¢630 | 3 | 4 | 5 | Interlocking | 9-16 | 32 - 102 | 400-500 |
FAQ
1.Are you Factory?
Ans: Yes,we foucs on manufactuer kelly bars for more than 17years
old.Our factory locted in Shandong now,own two factories .
2.What kind of kelly bar can we provide?
Ans.: We can provide kelly bars for almost all the brand rotary
drilling rig,the interlocking Kelly bar and friction Kelly bar,most
are
for Bauer,IMT,MAIT,SOILMEC,SANY,TEG, SUNWARD,XCMG,Etc. For 17 years
experience, supply all the world clients with good
satisfaction.
3.What is the advantages of our kelly bar?
Ans.:We use super quality seamless steel pipe material, which makes
the kelly bar more durable, and our kelly bar with competitive
and reasonable price. We have got the ISO9001 certification , no
matter you are dealers or end user, you will get the biggest
profit.
4. What warranty do we provide?
Ans.: We provide 1 years warranty time.
5. What is the lead time?
Ans.: Usually the lead time is 7days,after receipt of your down
payment.
6.What payment terms do we accept?
Ans.: We accept TT in advance , LC at sight or Western Union, etc .
7.Does the product accept customization?
Ans.: Yes.
