New Product IMT Full Interlock Kelly Bar AF300 OD482mm Kelly Bar Use For Drilling Rig

Ask Lasest Price
Brand Name :	JTHL
Model Number :	AF300
Certification :	ISO9001
Price :	18000$~50000$/set
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	1000sets/month
Delivery Time :	7 days

Add to Cart

Product Details
Company Profile

New Product IMT Full Interlock Kelly Bar AF300 OD482mm Kelly Bar Use For Drilling Rig

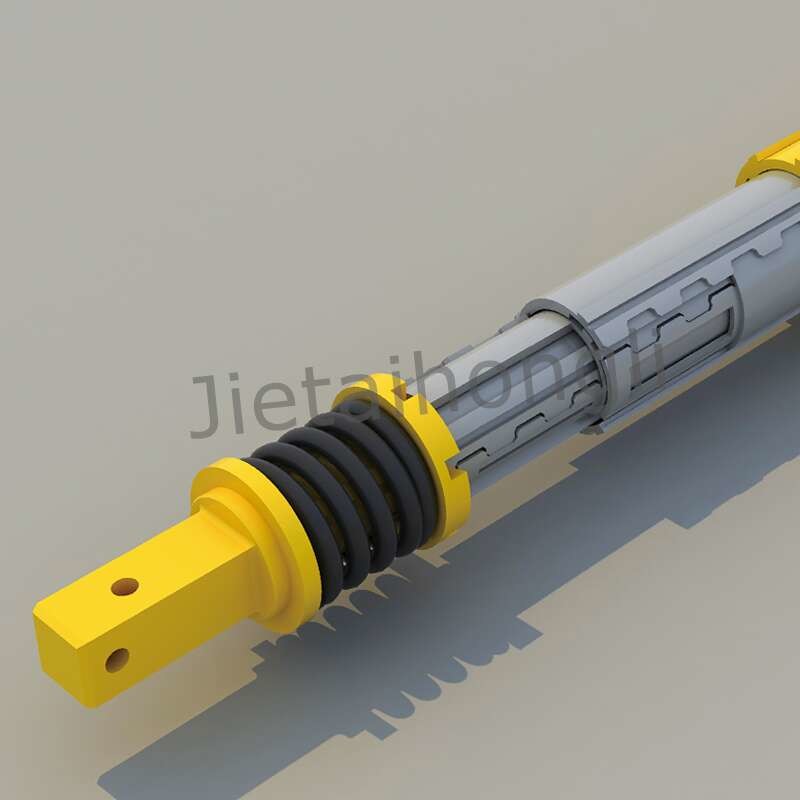

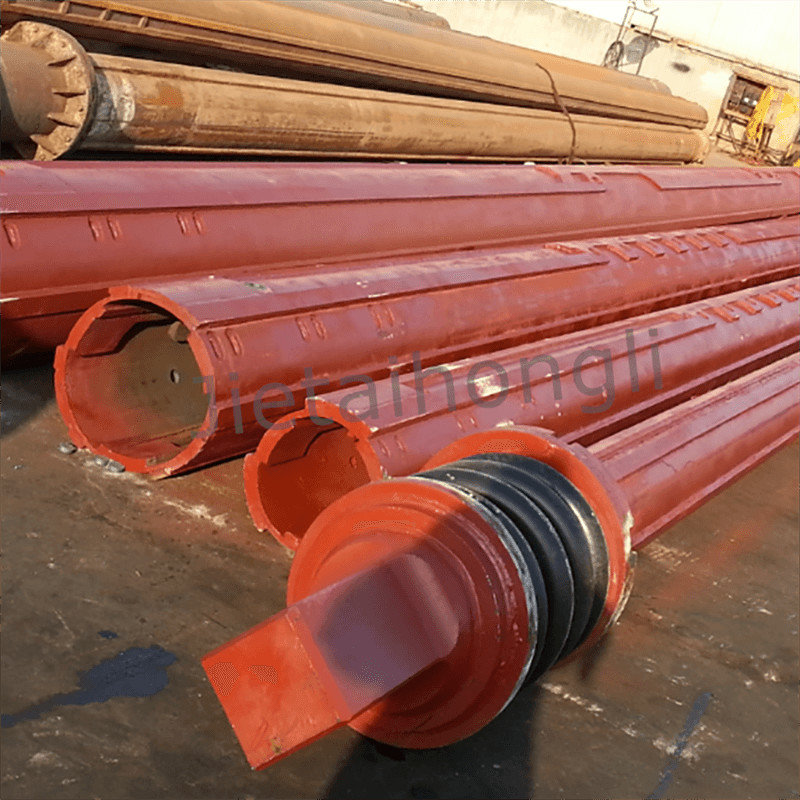

IMT Full Interlock Kelly Bar AF300 OD482mm Kelly Bar

Application	Foundation Drilling Equipment, Rotary Drill Rig, Piling Equipment
OEM	Available
Type	Frictional/Interlocking
Color	Gray/Yellow/red/customer
Style	Mechanical

Combined-interlock Kelly bar is composed by interlock Kelly bar and full multi-interlock Kelly bar.

For this type of Kelly bar , the first section is 3-keys interlock type, inner few sections are multi-type step keys , the outer keys are three sections three set of concave and convex form .

Combined-interlock Kelly bar is based on domestic rig configuration and condition demand, combined with the home and abroad advanced manufacture technology, supporting domestic and foreign rotary piling rig.

This type Kelly bar have been applied for patent, the patent No. is 201420542676.9

No.	OD	Section			Way of crowding	Length of per section(m)	Drill depth	Torque
1	¢440	3	4	5	interlock-type	9 - 15	24 – 55	220-260
2	¢470(482)	3	4	5	interlock-type	9 - 15	24 – 70	230-280
3	¢508	3	4	5	interlock-type	9 – 15	24 – 70	260-360
4	¢530(540)	3	4	5	interlock-type	9 – 18	24 – 85	360-420
5	¢575(580)	3	4	5	interlock-type	9 – 18	24 – 85	420-460
6	¢630	3	4	5	interlock-type	9 – 20	24 – 92	460-550
