    Bauer Style Hard Interlock Kelly Bar For Rock Foundation Bottom Pipe Rig

    Ask Lasest Price
    Brand Name : JTHL
    Model Number : Kelly bar Bauer
    Certification : ISO9001
    Price : 17000$~40000$
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 100set /month
    Delivery Time : 7 days
    • Product Details
    • Company Profile

    Bauer Style Hard Interlock Kelly Bar For Rock Foundation Bottom Pipe Rig

    Bauer Style Hard Interlock Kelly Bar For Rock Foundation Bottom Pipe RigBauer Style Hard Interlock Kelly Bar For Rock Foundation Bottom Pipe RigSpecification
    No.
    Diammeter of The First
    Section
    Sections
    Key Pressure Type
    Length of per section(m)
    Drill depth
    Torque(KN.M)
    1
    ¢299
    3
    Interlocking
    9-12
    24-45
    100 -120
    2
    ¢342
    3
    4
    Interlocking
    9 - 12
    24-45
    100 -120
    3
    ¢355
    3
    4
    Interlocking
    9 - 14
    24 - 56
    100-120
    4
    ¢368
    3
    4
    Interlocking
    9 - 14
    24 - 56
    150-180
    5
    ¢377
    3
    4
    Interlocking
    9 - 14
    24 - 56
    150-180
    6
    ¢394
    3
    4
    Interlocking
    9 - 15
    24 - 58
    180-200
    7
    ¢406
    3
    4
    Interlocking
    9 - 15
    24 - 58
    180-200
    8
    ¢419
    3
    4
    Interlocking
    9 - 15
    24 - 58
    200-230
    9
    ¢440(445)
    3
    4
    Interlocking
    9 - 15
    24 – 58
    220-260
    10
    ¢470 (482)
    3
    4
    Interlocking
    9 - 16
    24 – 60
    220-260
    11
    ¢508
    3
    4
    Interlocking
    9 – 18
    24 – 68
    260-360
    12
    ¢530 (540)
    3
    4
    5
    Interlocking
    9 – 20
    32 – 92
    320-400
    13
    ¢580 (575)
    3
    4
    5
    Interlocking
    9 – 20
    32 – 92
    360-420
    14
    ¢630
    3
    4
    5
    Interlocking
    9 - 22
    32 - 102
    400-500
    Bauer Style Hard Interlock Kelly Bar For Rock Foundation Bottom Pipe RigBauer style hard interlock kelly bar for rock foundation bottom pipe rigBauer Style Hard Interlock Kelly Bar For Rock Foundation Bottom Pipe RigBauer Style Hard Interlock Kelly Bar For Rock Foundation Bottom Pipe Rig

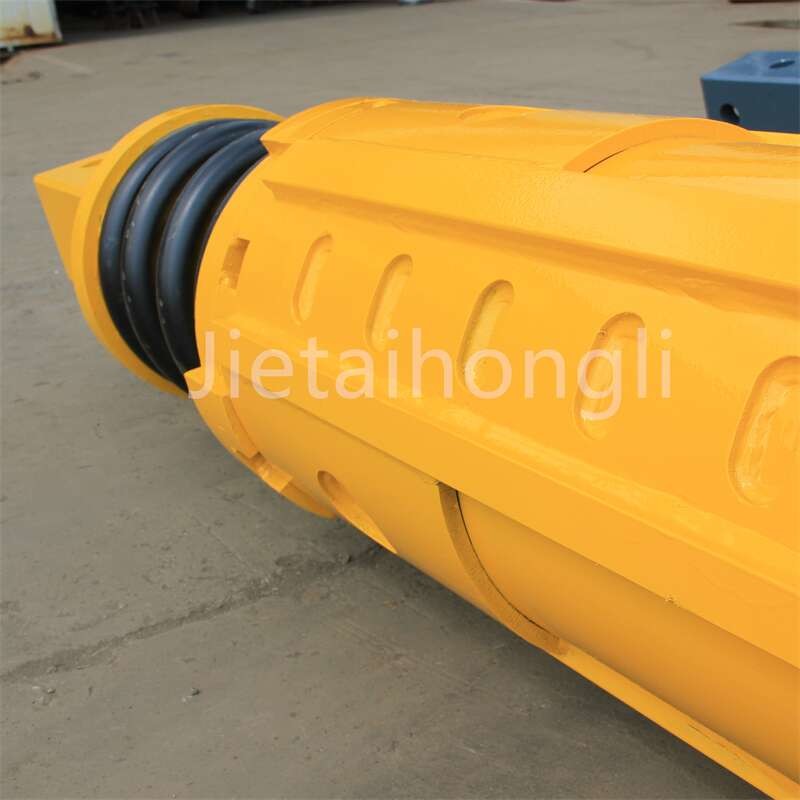

    Interlock Kelly bar adopts the international advanced six-ribs distribution technology. The inner keyboards and outer keyboards are manufactured from overall forging and pressing high-tensile steel. The special heat treatment makes this style Kelly bar with high abrasion resistance, compression resistance, and excellent welding property. Kelly bar is based on domestic rig configuration and condition demand, combined with the home and abroad advanced manufacture technology, supporting domestic and foreign rotary piling rig.
