OD600 /800 /1200/1500/2000/2500 mm Rock Drilling Bucket Match With
Drilling Machine SR150 XR220 AF180 ZR160

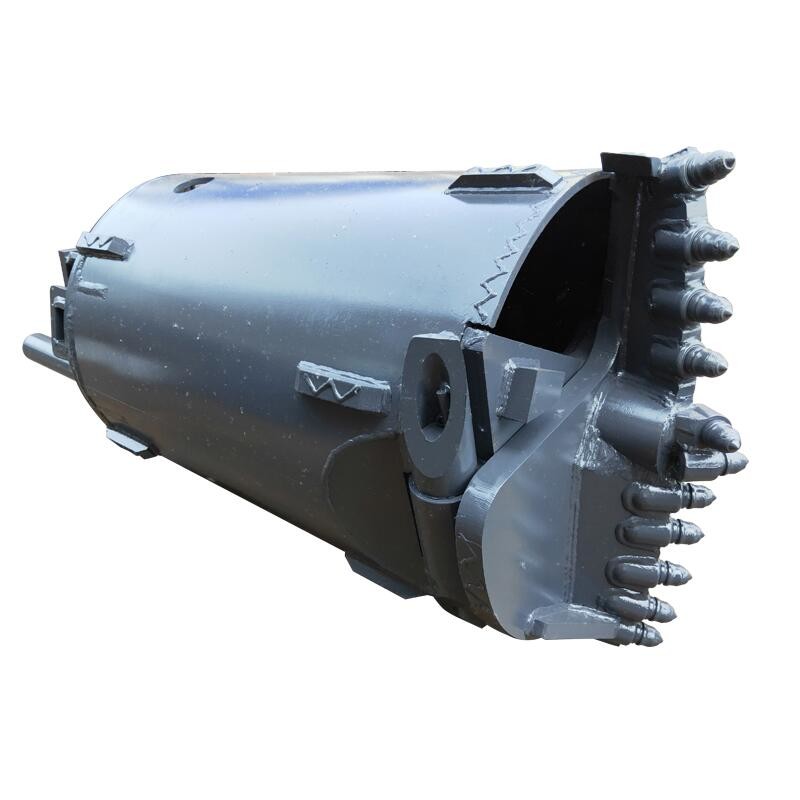

DRILL BUCKET WITH ROCK TEETH
FEATURE :
1. Cast pilot with rock drilling bits , arc guide plate teeth
arrangement, double unlocking system;
2 Staggered arrangement of rock drilling bits;
3 Applicable layers: gravel , pebble , highly or medium weathered
rock
4. Kelly box size as per customer demand
Drilling Tool Model
|
| Model | Size | Height | Bucket Thickness | Upper Bottom Thickness | Lower Bottom Thickness | No of teeth | Weight |
Drilling Bucket with Rock Drilling Bits | φ600 | 1200 | 16 | 40 | 40 | 8 | 750 |
| φ800 | 1200 | 16 | 40 | 50 | 11 | 965 |
| φ900 | 1200 | 16 | 40 | 50 | 11 | 1135 |
| φ1000 | 1200 | 16 | 40 | 50 | 13 | 1190 |
| φ1200 | 1200 | 16 | 40 | 50 | 15 | 1550 |
| φ1500 | 1200 | 16 | 40 | 50 | 19 | 2100 |
| φ1600 | 1200 | 16 | 40 | 50 | 19 | 2400 |
| φ1800 | 1000 | 20 | 50 | 50 | 21 | 2900 |
| φ2000 | 800 | 20 | 50 | 50 | 23 | 3450 |
| φ2200 | 800 | 20 | 50 | 50 | 26 | 4100 |
| φ2500 | 800 | 20 | 50 | 50 | 29 | 5000 |
| φ2800 | 800 | 20 | 50 | 50 | 33 | 6100 |
| φ3000 | 800 | 20 | 50 | 50 | 35 | 7200 |
| Kelly Box | Sany--150 | Bauer--200 | Bauer--250 |
| Bottom Type | Double bottom and double cut | Single bottom and single cut |
