    Drive Sleeve Of Power Head Rotary Drilling Rig Components

    Ask Lasest Price
    Brand Name : JTHL
    Model Number : OD600mm
    Certification : ISO9001
    Price : 900$-2100$
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 90sets/month
    Delivery Time : 3-9days
    • Product Details
    • Company Profile

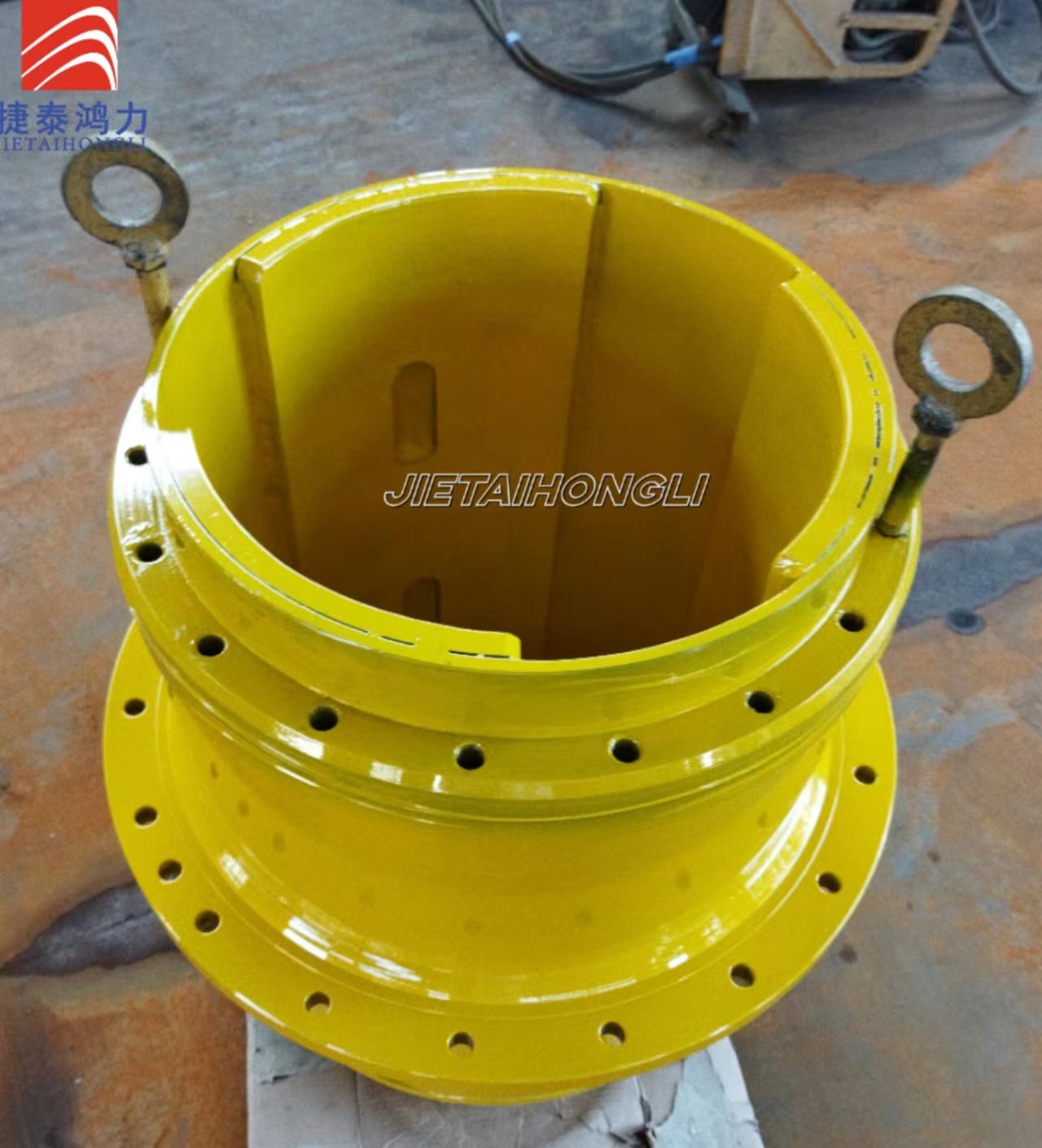

    Drive Sleeve Of Power Head Rotary Drilling Rig Components

    Rotary drive Sleeve Quick Details

    The utility model comprises a driving sleeve body and a plurality of movable keys; A plurality of keyways are longitudinally arranged on the drive sleeve body, and a plurality of movable keyways are respectively fixedly connected in the plurality of keyways through bolts; One end of the keyway of the drive sleeve body sinks radially to form a sink or opening; One end of the movable key bar protrudes along the thickness direction to form a pressure bearing table. The movable key bar is clamped in the keyway and the pressure bearing table of the movable key bar is clamped in the groove or opening of the keyway of the drive sleeve body. The inner side of the movable key bar pressure bearing table rests against the groove or opening side wall of the keyway. When the drive sleeve of the utility model rotates to drive the drill pipe, the transition mating surface between the drive sleeve and the movable key bar bears the pressure instead of the bolt. When the machine lock drill pipe is used, the pressure bearing table bears the axial pressure by contacting the drive sleeve, avoiding the bolt from being directly sheared, which makes the service life of the utility model longer.




    CERTIFICATE

    Drive Sleeve Of Power Head Rotary Drilling Rig Components


    FACTORY PHOTO

    Drive Sleeve Of Power Head Rotary Drilling Rig ComponentsDrive Sleeve Of Power Head Rotary Drilling Rig Components
    Drive Sleeve Of Power Head Rotary Drilling Rig ComponentsDrive Sleeve Of Power Head Rotary Drilling Rig Components

    FAQ

    Q1:Are u manufacturer.

    A1:Yes ,we have focus on piling rig and spares for more than 18 years old.
    Q2: Could u accept tailored?
    A2: Yes ,any type can be tailored according to clients' request.
    Q3: Is quality reliable?
    A3: Yes ,we can supply for main piling rigs factories.

    Welcome Contact Us

    Drive Sleeve Of Power Head Rotary Drilling Rig Components

    Due to space limitations, not all product details are displayed. For details, please consult Cathy Lee, WhatsApp+8613311085686

    Any need feel free connect me please https://api.whatsapp.com/send?phone=8613311085686
    After clicking on the link on the phone you can use Whatsapp to contact me directly.We can discuss more details in there .
